3G Vehicle GPS Tracker

Tire Pressure Monitoring
Fully integrated for tire pressure monitoring system to enhance safety of your fleet.

CAN bus interface (Optional)
Compatible with Inventure CAN bus interface which can read CAN data of various vehicle models.

Multifunctional
Support camera, RFID, LCD/ LED display, fuel/ temperature sensor and iButton driver ID.

Multiple alerts & reports
Support speeding/ towing/ geo-fence alerts, cornering/ mileage reports etc.

Εγγύηση
Η εγγύηση της συσκευής 3G Vehicle GPS Tracker είναι ένα (1) έτος.

SPECIFICATIONS

• Dimension:  105 mm x 65 mm x 26 mm
• Weight:  190g
• Power supply:  DC 11–36 V/1.5 A
• Backup battery:  400 mAh/3.7 V
• Power consumption:  Current in standby mode: 8 mA
• Working hour:  47 hours in power-saving mode, 4.7 hours in normal mode
• Operating temperature:  -5°C to 75°C (high-temperature battery)
• Operating humidity:  5% to 95%

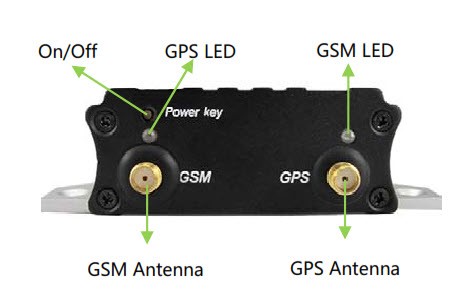

LED indicator:

• Green indicator showing the GSM signal
• Blue indicator showing the GPS signal

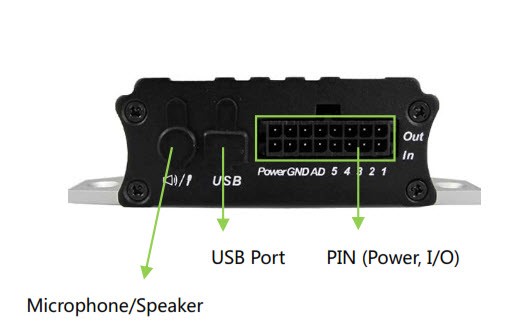

Button/Switch:  1 SOS button (for sending SMSs or dialing). 1 power button
Memory:  8 MB buffer
Sensor:  3-axis accelerometer (used to wake the device up by vibration and detect towing alerts, harsh acceleration alerts, and harsh braking alerts)
Frequency band:
T333-E:

• UMTS/HSDPA: 900/2100MHz
• GSM/GPRS: 900/1800MHz

T333-A:

• UMTS/HSDPA: 850/1900MHz
• GSM/GPRS: 850/900/1800/1900MHz

T333-T:

• UMTS/HSDPA: 850/2100MHz
• GSM: 850/900/1800/1900MHz

Positioning accuracy:  2.5m
