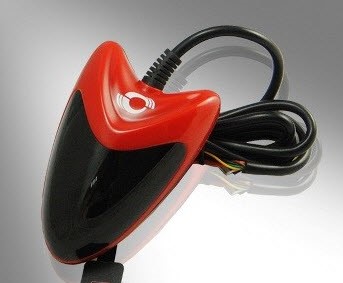

Vehicle GPS Tracker (Waterproof)

This unit is a car GPS tracker with IP67 water-resistance rating and also can be installed into motorcycles, yachts, and boats. It is equipped with a 1-Wire interface, which can be connected to the iButton reader, temperature sensor, fuel level sensor, etc.

IP67 water resistant
Specialized design provides a tough casing that stands up to the elements.

Flexible configurable I/O
Offer outstanding configuration flexibility to cater to a wide variety of requirements.

Driving behavior analysis
Detect driver behaviors, such as the driver fatigue, idling, harsh acceleration/braking, harsh cornering, collision, etc.

SPECIFICATIONS

• Dimension:  80.5 mm x 60 mm x 23.5 mm
• Weight:  100g
• I/O power cable length:  50cm
• Power supply:  DC 11~90 V/1.5A
• Power consumption:  Current in standby mode: 65 mA
• Operating temperature:  -35°C to 80°C (available for the device without a battery)
• Operating humidity:  5% to 95%

LED indicator:

• Green indicator showing the 2G/3G/4G signal
• Blue indicator showing the GPS signal

Button/Switch:

• 1 upgrade button (used to manually upgrade the firmware)
• 1 power button

Memory:  8 MB buffer
Sensor:  3-axis accelerometer (used to wake the device up by vibration and detect towing alerts, harsh acceleration alerts, and harsh braking alerts)
Frequency band:  GSM/GPRS: 850/900/1800/1900 MHz
Positioning accuracy:  2.5m
